- Multi-constellation and Multi-frequency
- Superior Antenna Phase Center
- High Gain Antenna
- Tracking Weak Signal
- Small Size and Light Weight
- Rugged Design
|

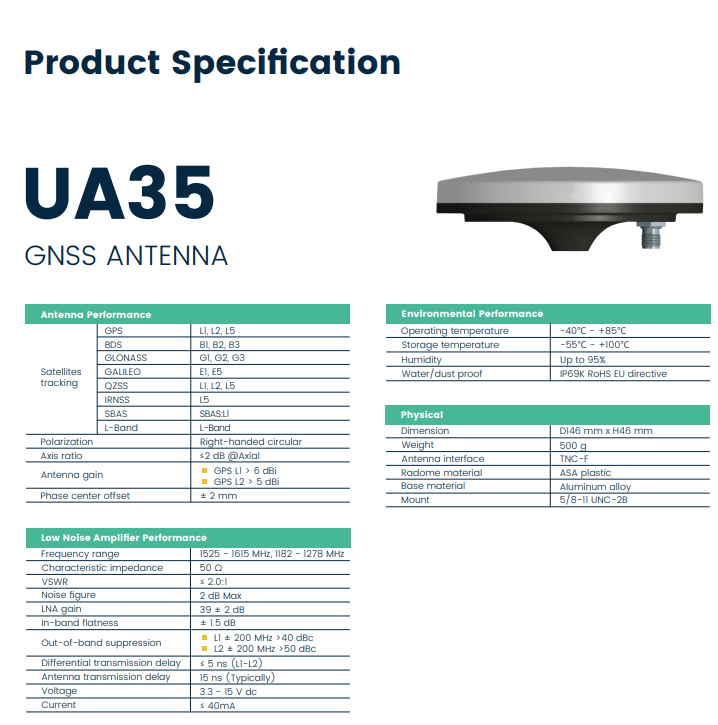

Antenna
Performance |
|
|
Frequency |
GPS: L1/L2/L5 BDS: B1/B2/B3 GLONASS: G1/G2/G3 GALILEO: E1/E5 SBAS |
|
Polarization |
Right-handed circular |
|
Axis ratio |
≤2dB @Axial |
|
Antenna Gain |
GPS L1 > 6dBi GPS L2 > 5dBi |
|
Phase Center Offset |
± 2mm |
|
Low
Noise Amplifier Performance |
|
|
Frequency Range |
1525 ~ 1615 MHz 1182 ~ 1278 MHz |
|
Characteristic Impedance |
50 Ω |
|
VSWR |
≤ 2.0:1 |
|
Noise Figure |
2dB Max |
|
LNA Gain |
39 ± 2dB |
|
In-band Flatness |
± 1.5dB |
|
Out-of-band Suppression |
L1 ± 200 MHz >40dBc L2 ± 200 MHz >50dBc |
|
Differential Transmission Delay |
≤ 5ns (L1-L2) |
|
Antenna Transmission Delay |
15ns (Typically) |
|
Voltage |
3.3 - 15 VDC |
|
Current |
40mA Max |
|
Environmental
performance |
|
|
Operating Temperature |
-40℃ ~ +85℃ |
|
Storage Temperature |
-55℃ ~ +100℃ |
|
Humidity |
Up to 95% |
|
Water/Dust Proof |
IP69K RoHS EU Directive |
|
Physical |
|
|
Dimension |
Φ146 mm x H46 mm |
|
Weight |
500 g |
|
Antenna Interface |
TNC-F |
|
Radome Material |
ASA Plastic |
|
Base Material |
Aluminum Alloy |
|
Mount |
5/8-11UNC-2B |
