eRTK10 mini
POCKET-SIZE GNSS RECEIVER

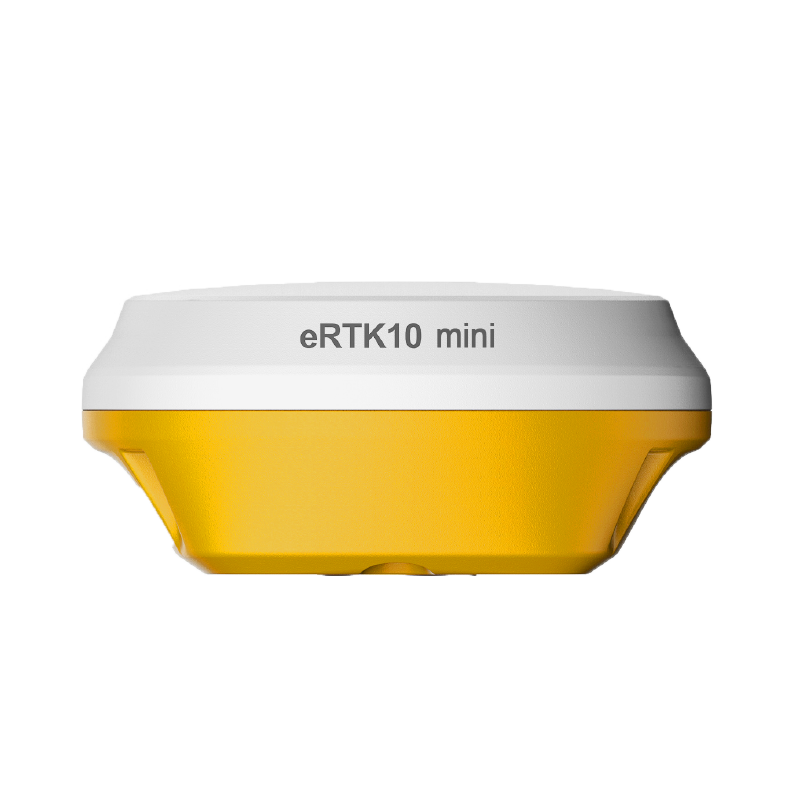

The eSurvey eRTK10 mini is a pocket-size IMU-based GNSS receiver equipped with a high-performance and high-precision GNSS module. It integrates IMU tilt technology for efficient staking out, features a compact and lightweight design for easy portability, and serves as an ideal high-precision GNSS positioning sensor for seamless integration into various industry application solutions.
Easy to be integrated
With the configurations of voice prompts, indicator lights, a universal Type-C interface, and Bluetooth 5.0 EDR & BLE for seamless interaction ar provide stable high-precision GNSs positioning data, making it suitable for use in various industry solutions requiring high-precision GNSS local
Max 60° Tilt Survey: A Different Way of Working
Quickly measure accurate points while standing or walking without leveling the pole.
Concentrate on where the pole tip needs to go, which is especially useful during a stakeout Easily start a survey in environments that are hard to reach, such as building corners and slopes.
No longer worry about the movement of the pole when measuring. provided that the pole tip is stationary.
Ultra-portable
Palm-sized and weighing just 380g, this receiver is incredibly light and easy to carry. Its sleek design allows seamless integration into porto stable high-precision GNSS data for a variety of industries
AR Visual Stakeout: More Efficient Stakeout
There is no need to move the pole back and forth and rely on work experience during a stakeout. Follow the visual guide to precisely find th Suitable for a non-experienced user and provide up to 50% more efficiency.
