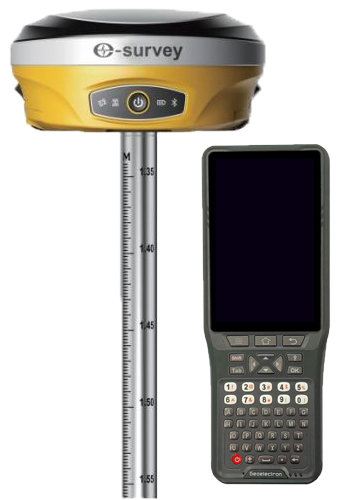

E600
Powerful, full-featured RTK receiver
The E600 is an innovative product from eSurvey GNSS. Its rugged IP67 design enables operation in a variety of environments. Multi-star constellation and frequency tracking provide a stable solution for your work. Thanks to its dual, swappable batteries, it can operate continuously for all-day operation.
Multi-constellation and multi-frequency
With 800 GNSS tracking channels, the E600 delivers consistent and reliable accuracy. All GNSS signals are standardized, including GPS, BDS, GLONASS, GALILEO, QZSS, IRNSS, and SBAS.
Dual Smart Batteries for Hot Swapping
The E600 includes two hot-swappable batteries for up to 10 hours of field operation. The battery can be changed at any time without interrupting work. Battery level can also be checked on the LED indicators with a simple click.
Dynamic Tilt MEMS Surveying
With eSurvey’s innovative Tilt Surveying, the experience is amazing. The sensor is adapted to different working environments and can be ready in as little as 10 seconds. The maximum tilt angle of 60° ensures you can perform surveys without interrupting your work.
L-band Atlas
Atlas is a service that provides global accuracy correction via L-band satellites. With an ATLAS subscription, the E600 can achieve centimeter accuracy without any base station. aRTK
Powered by Atlas, the innovative aRTK technology works on any Atlas-compatible device, enabling it to maintain RTK accuracy, availability, and reliability when RTK corrections fail at no additional cost
Web User Interface
You can view position status, set working mode, download data, and update firmware from the web user interface using any phone, tablet, or PC.
Smart Voice
The E600 will automatically broadcast a voice to remind the user of a solution status change. It can also broadcast the current working mode and solution status manually by pressing the power button.
Durable Design
The E600’s main body is made of magnesium to provide strong shock and vibration resistance. Its IP67 certification ensures operation in a variety of harsh environments.
Related Products
UT32
8” Rugged Android Tablet
The UT32 is an 8-inch tablet with Full HD resolution (1280 x 800 pixels). The screen is also bright and colorful, making it easier for you to work. As far as internal performance goes, this is an excellently fast tablet; you can expect plenty of speed and fewer frozen apps thanks to the tablet’s 2.2GHz octa-core processor. Thanks to its impressive 8200 mAh rechargeable battery, the device can operate for 6 hours on a single charge. The UT32 is a superb rugged tablet option for anyone looking for portable, easy-to-use tablets.

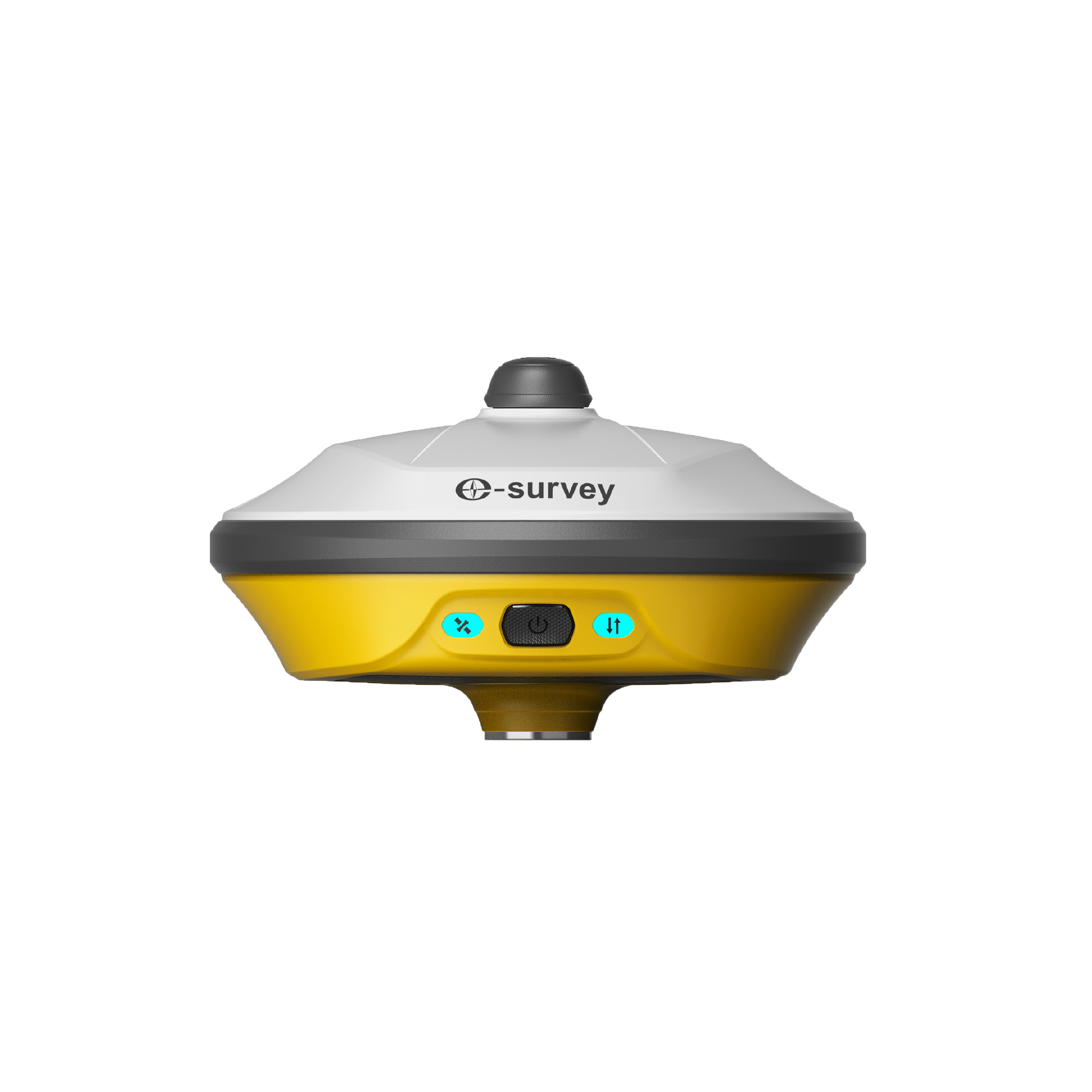

eRTK10
AR VISUAL STAKEOUT GNSS RECEIVER
The eSurvey eRTK10 is a brand new GNSS receiver integrated with visual technology by eSurvey GNSS. It supports immersive 3D stakeout under real working environment. With the AR visual positioning technology, the eRTK10 helps you do stakeout faster and improves your working efficiency. The compact design makes it easy to carry around in various complex environments. Integrated with internal radio (Rx only) and 60° inclination IMU function, the eRTK10 is a perfect choice for any rover station scenarios.

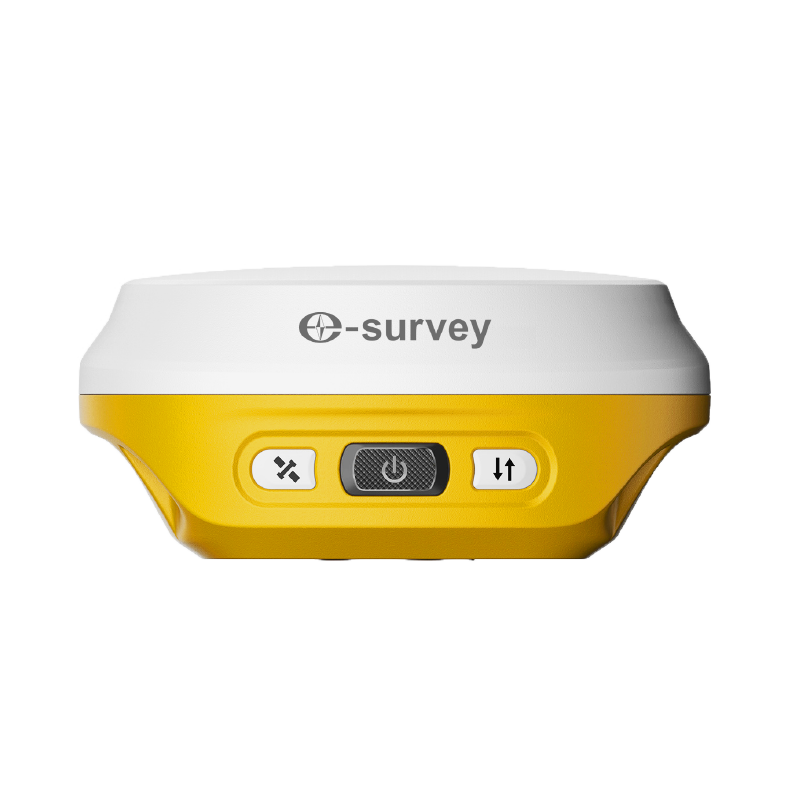

eRTK10 mini
POCKET-SIZE GNSS RECEIVER
The eSurvey eRTK10 mini is a pocket-size IMU-based GNSS receiver equipped with a high-performance and high-precision GNSS module. It integrates IMU tilt technology for efficient staking out, features a compact and lightweight design for easy portability, and serves as an ideal high-precision GNSS positioning sensor for seamless integration into various industry application solutions.
eHP10
INDUSTRY DESIGN HEADING AND NAVIGATION GNSS RECEIVER
As a heading GNSS receiver, the eHP10 integrates dual-antenna, TX/RX radio, lora, serial port and 4G network, with a variety of working modes, suitable for Machine control, Marine survey, Geodesy and other industries.Due to its unique interface and internal design, the eHP10 greatly improves the waterproof and shock resistance performance, and can work stably in a variety of environments.
NET20 PLUS
HIGH-PERFORMANCE GNSS REFERENCE STATION RECEIVER
The eSurvey NET20 PLUS is designed for high-precision CORS reference stations. With a 13600 mAh battery that can ensure continuous recording and respond to the emergency. Users can use any phone or tablet to configure devices easily from the powerful Web UI. The rich data interface demands various applications such as monitoring and machine control.
eRTK60
FULL-FEATURED VISUAL GNSS RECEIVER
The eSurvey new eRTK60 GNSS receiver integrates high performance GNSS, IMU and dual-camera technologies to provide more reliable and diverse measurement results. Visual survey technology enables you to measure the point without physically reaching it, thereby giving you more flexibility in the field and maximizing productivity in your projects. The upgraded built-in radio supports longer communication distances. The extended working endurance of the eRTK60 is guaranteed by its hot-swap batteries. Its colorful LED screen also offers a more intuitive working status and operation interface.
E300 Pro
FULL-FEATURED GNSS RECEIVER
The eSurvey E300 Pro is a fully functional GNSS receiver with an extremely compact design by eSurvey GNSS. With its high-performance GNSS board, it can track all present constellations and satellites. The GNSS, Wi-Fi, Bluetooth, and GSM four-in-one antenna, stable data transmission, RTK Aid, and IMU function, make it suitable for all surveying applications.
UA35
GNSS ANTENNA
The eSurvey UA35 covers the reception of GNSS signals such as GPS, GLONASS, BDS, Galileo, QZSS, IRNSS and L-Band. It has the superior performance of the antenna phase center. Its small size and light weight make it easy to carry around and operate.
TRU35
ADVANCED & RUGGED EXTERNAL RADIO FOR A LONG-DISTANCE TRANSMISSION
The eSurvey TRU35 is a high-power, small-size, half-duplex digital radio model, which is designed using advanced 32-bit cortex M4 micro-controller technology, wireless transceiver RF technology, and digital communication technology. It uses high-quality RF components, excellent EMC and EMI processing.
GNSS.NET
WINDOWS – VRS MANAGEMENT SOFTWARE
GNSS.NET is the software to combine multiple base stations as a network providing VRS service. It includes functions such as station management, user management, physical base station data transmission, VRS service, coordinate system transmission…
eBase 20
PORTABLE GNSS BASE RECEIVER
The eSurvey eBase 20 is a professional and portable GNSS base receiver. With a high-precision GNSS module and tracking multiple frequencies, eBase 20 is specifically designed to work as a GNSS base station. Combining a 4G modem and internal radio, eBase 20 is a perfect choice for a base station. The eSurvey eBase 20 is ideal for applications such as UAV, USV, agriculture, intelligent driving, surveying and mapping, etc.

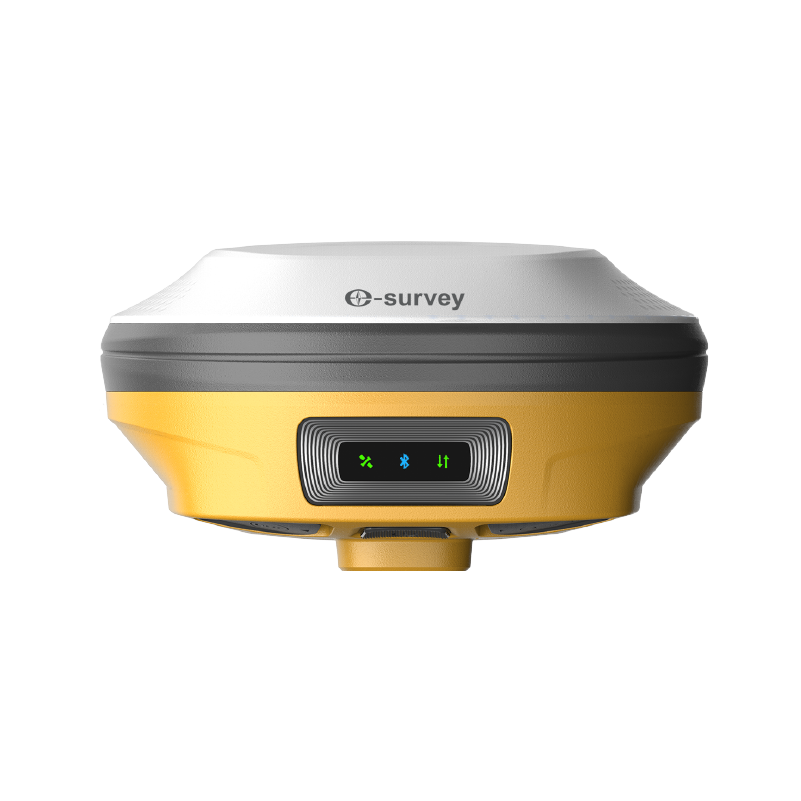

eRTK20
